Good Heat Storage Honeycomb Heat Accumulator Honeycomb Ceramic Heat Regenerator

  • Good Heat Storage Honeycomb Heat Accumulator Honeycomb Ceramic Heat Regenerator
  • Good Heat Storage Honeycomb Heat Accumulator Honeycomb Ceramic Heat Regenerator
  • Good Heat Storage Honeycomb Heat Accumulator Honeycomb Ceramic Heat Regenerator
  • Good Heat Storage Honeycomb Heat Accumulator Honeycomb Ceramic Heat Regenerator
  • Good Heat Storage Honeycomb Heat Accumulator Honeycomb Ceramic Heat Regenerator
Place of Origin Zhengzhou
Brand Name Jaen
Certification ISO
Minimum Order Quantity 4 Tons
Price Negotiable
Packaging Details Pallets
Delivery Time 9-10 days
Payment Terms T/T, L/C
Supply Ability 5000 tons/month
Product Details
Al₂O₃ 19-72% SIO2 28-72%
Shape Customized Size Customized
Leave a Message
Product Description

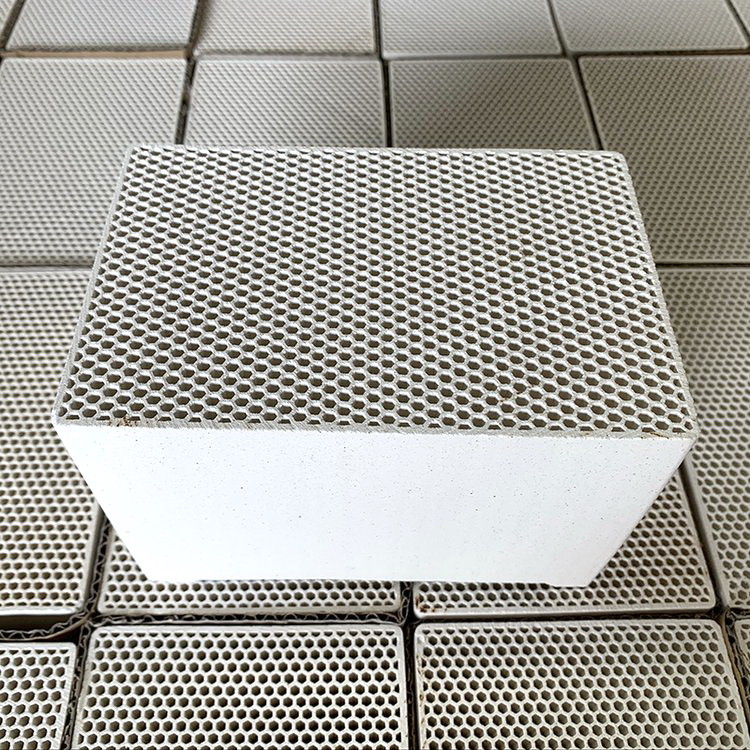

Good Heat Storage Honeycomb Heat Accumulator Honeycomb Ceramic Heat Regenerator

The features of the honeycomb ceramic regenerator are as follows: low heat expansion, high specific heat capacity, high specific surface area, low pressure drop, low thermal resistance, good thermal conductivity, good thermal shock resistance, etc. It is widely used in HTAC (High Temperature Air Combustion) of metallurgical machinery industry. It combines mist heat recovering and high efficient combustion with NOx emission reduction technology to realize the purpose of extreme energy-saving of NOX emission reduction.

Good Heat Storage Honeycomb Heat Accumulator Honeycomb Ceramic Heat Regenerator 0Good Heat Storage Honeycomb Heat Accumulator Honeycomb Ceramic Heat Regenerator 1
Physical and Chemical Index:



Item

 Low Temperature High Temperature
Unshaped Porcelain Loose Cordierite Dense Cordierite Cordierite Mullite Mullite Corundum Mullite

Chemical

Composition

 Al2O3 (%) 19-23 33.-35 35-37 33-35 59-61 69-72
MgO (%) - 8-9 6-7 13.5-15.5 - -
SiO2 (%) 68-72 48-50 48-50 48-51 37-39 28-30
Thermal Expansion (Room Temp.-1000%)×10-6/℃ 4-8 1.5-1.8 2-2.5 2.0-3.0 4.2-5.0 4.5-5.2
Thermal Capacity(Room Temp.-1000℃), J/kg 800-900 750-900 800-1200 1100-1300 1100-1300 1300-1400
Heat Shock Resistance ℃ 150 300 250 300 230 260
Softening Temperature℃ 1200 1280 1350 1400 1630 1680
Refractoriness ℃ 1290 1360 1410 1480 1750 1790
Max Service Temperature 1100 1200 1300 1350 ＞1550 ＞1600

Project cases:
Good Heat Storage Honeycomb Heat Accumulator Honeycomb Ceramic Heat Regenerator 2

Application:

It is mainly used in iron & steel plant, garbage incinerator, exhaust gas process thermal equipment, chemical plant, smelting plant, power plant, power industrial boiler, gas turbine, engineering heating equipment, ethylene cracking furnace, etc

Good Heat Storage Honeycomb Heat Accumulator Honeycomb Ceramic Heat Regenerator 3
Good Heat Storage Honeycomb Heat Accumulator Honeycomb Ceramic Heat Regenerator 4Good Heat Storage Honeycomb Heat Accumulator Honeycomb Ceramic Heat Regenerator 5
Welcome you to our factory:
Good Heat Storage Honeycomb Heat Accumulator Honeycomb Ceramic Heat Regenerator 6

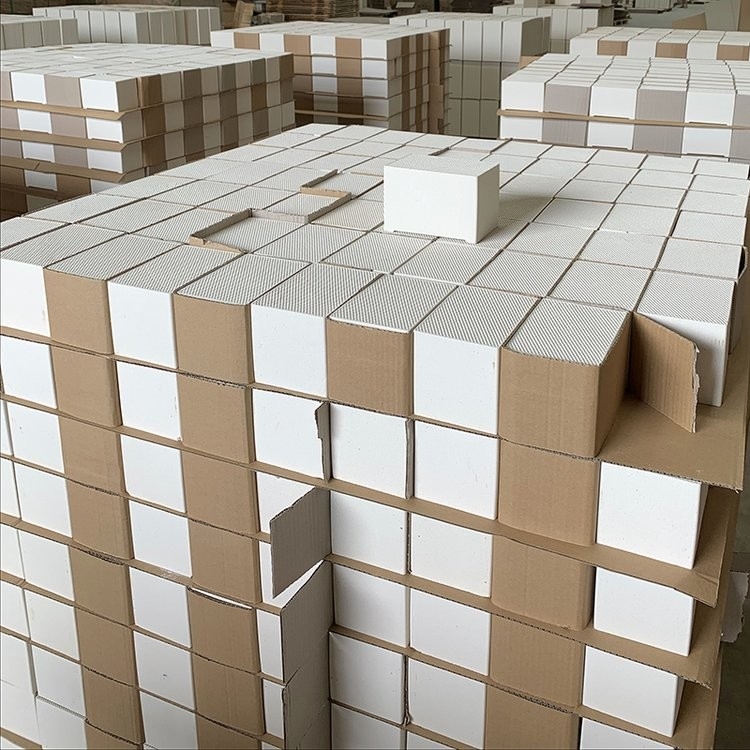

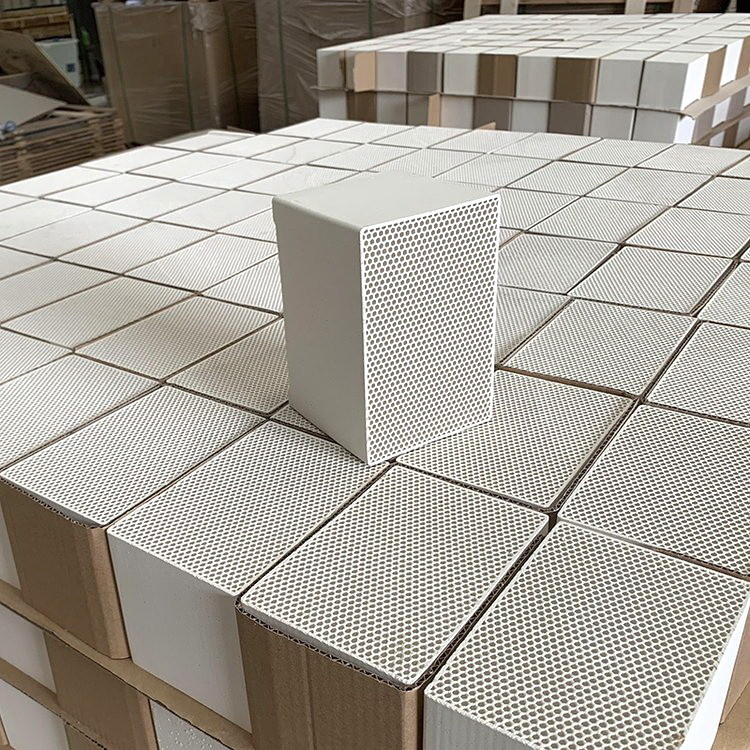

Packing:
Good Heat Storage Honeycomb Heat Accumulator Honeycomb Ceramic Heat Regenerator 7
When you visit our factory, we will pick up you at air port.
