| Place of Origin: | Zhengzhou |
|---|---|
| Brand Name: | Jaen |
| Certification: | ISO |
| Minimum Order Quantity: | 3 Tons |
| Price: | Negotiable |
| Packaging Details: | Pallets |
| Delivery Time: | 8-10 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5000 tons/month |
| Shape: | Customized | Size: | Customized |
|---|---|---|---|
| Al₂O₃: | 48≥% | Density: | 0.4-1.35/cm³ |

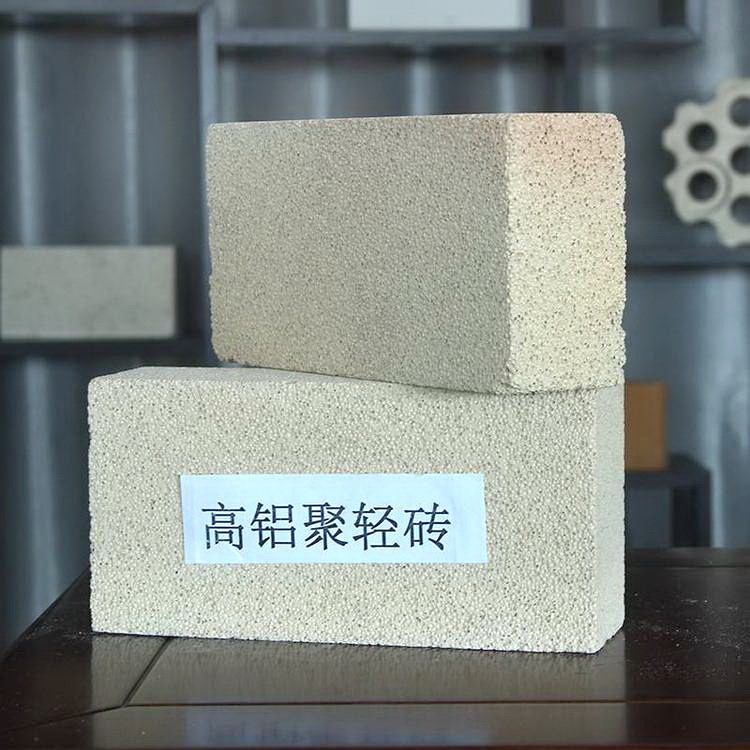

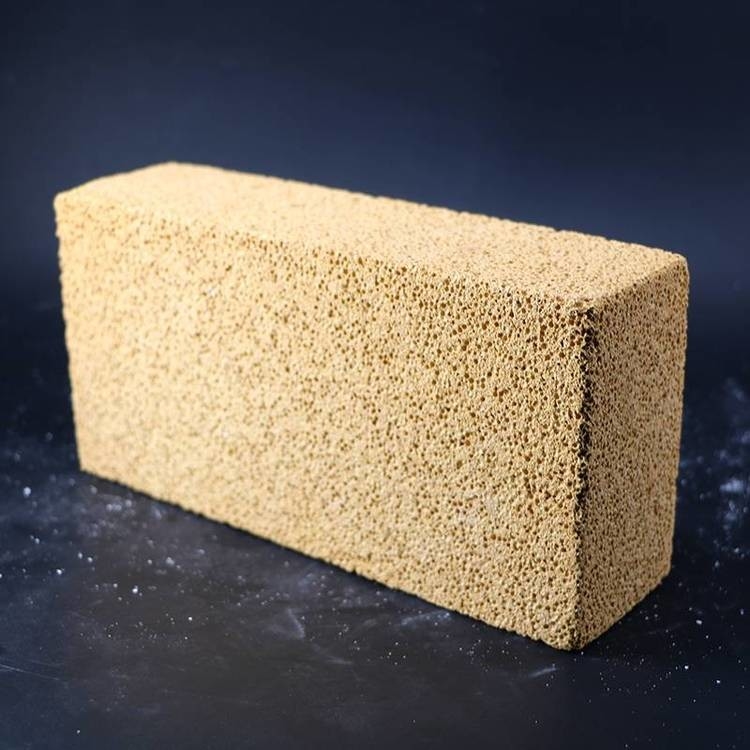

Lightweight High Alumina Insulating Bricks for Kiln Insulation Lining Energy Saving
Light weight high alumina brick is called high alumina insulating brick or light weight insulating brick, too. The Al2O3 of it is more than 48%. It is a kind of light weight refractory material, which is mainly composed of mullite, glass phase or corundum.
We produced it with high bauxite and little clay, by levigating, gas bubble method or bubble act, casting and shaping with slurry, firing under the temperature of 1300~1500℃.
Performance:
1. Low heat conductivity; 2. High strength, corrosion resistance; 3. Low heat capacity;
4. Lowshrinkage; 5. High insulation; 6. High refractoriness; 7. Low bulk & densit
Physical and Chemical Index:
|
Item |
Light Weight Brick | ||||||
| LG-1.0 | LG-0.9 | LG-0.8 | LG-0.7 | LG-0.6 | LG-0.5 | LG-0.4 | |
| Al2O3 | ≥48 | ||||||
| Fe2O3 | ≤2.0 | ||||||
| Bulk Density (g/cm3) | ≤1 | ≤0.9 | ≤0.8 | ≤0.7 | ≤0.6 | ≤0.5 | ≤0.4 |
| Cold Crushing strength (Mpa) | ≥3.92 | ≥3.43 | ≥2.94 | ≥2.45 | ≥1.96 | ≥1.47 | ≥0.78 |
| Thermal Conductivity Coefficient (W/mk) | ≤0.45 | ≤0.45 | ≤0.35 | ≤0.35 | ≤0.3 | ≤0.25 | ≤0.2 |
| Permanent Linear Change Rate (max 2%) (℃) | 1400 | 1400 | 1400 | 1350 | 1350 | 1250 | 1250 |
Project Cases:
Applications:Project cases:
It is mainly used in blast furnace, hot blast stove, baking furnace, carbon calciner, coking furnace, teeming ladle, casting system, boiler, cement kiln, glass furnace and all kinds of kiln linings and thermal equipment. It is applied in metallurgy, machinery, construction, casting, ceramics, electricity, petroleum, chemical industry, etc.
