Lightweight Mullite Insulating Bricks Refractory Bricks for Electric Stove Tops

  • Lightweight Mullite Insulating Bricks Refractory Bricks for Electric Stove Tops
  • Lightweight Mullite Insulating Bricks Refractory Bricks for Electric Stove Tops
  • Lightweight Mullite Insulating Bricks Refractory Bricks for Electric Stove Tops
  • Lightweight Mullite Insulating Bricks Refractory Bricks for Electric Stove Tops
  • Lightweight Mullite Insulating Bricks Refractory Bricks for Electric Stove Tops
Place of Origin Zhengzhou
Brand Name Jaen
Certification ISO
Minimum Order Quantity 5 Tons
Price Negotiable
Packaging Details Pallets
Delivery Time 6-10 days
Payment Terms T/T, L/C
Supply Ability 5000 tons/month
Product Details
Size Customized Al₂O₃ 42-73%
Density 0.6-1.0/cm³ Shape Customized
Leave a Message
Product Description

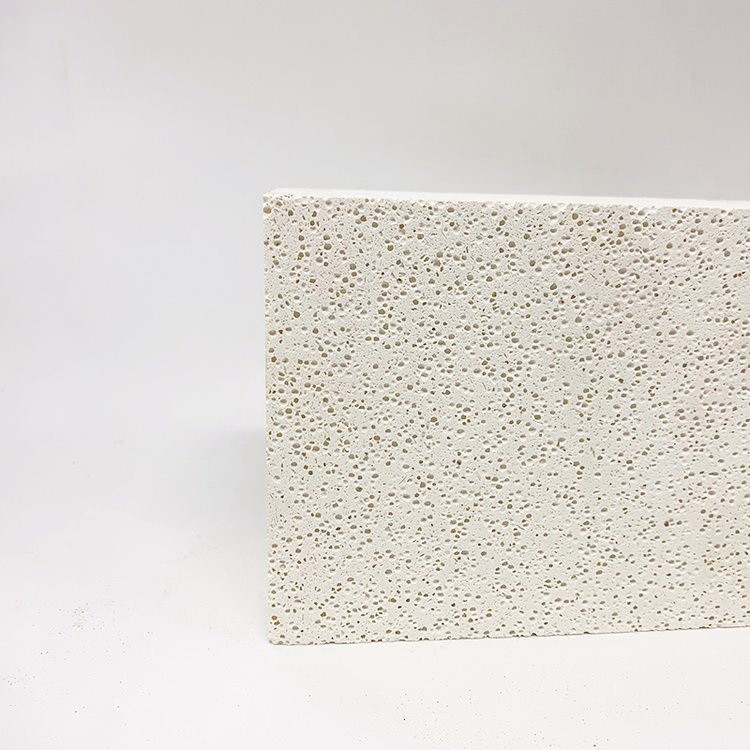

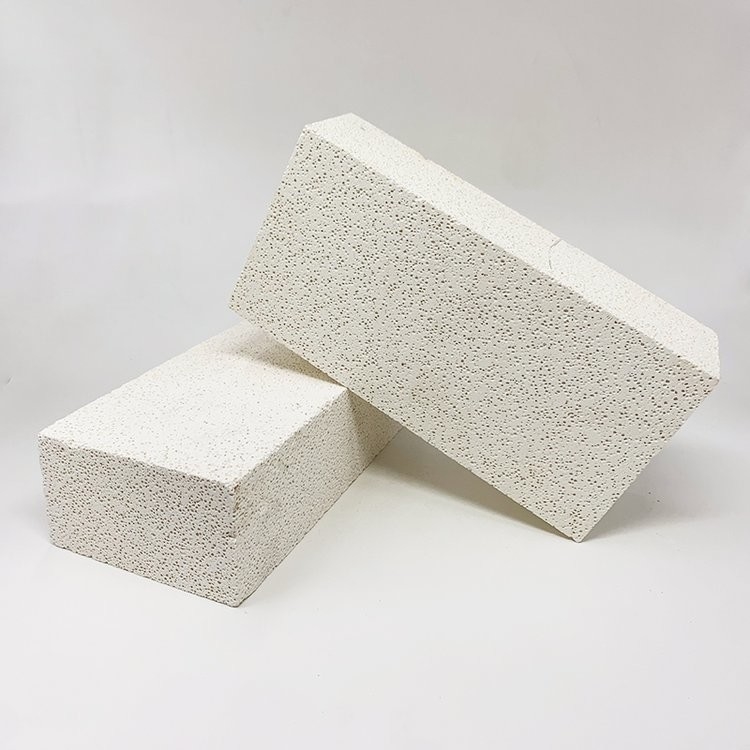

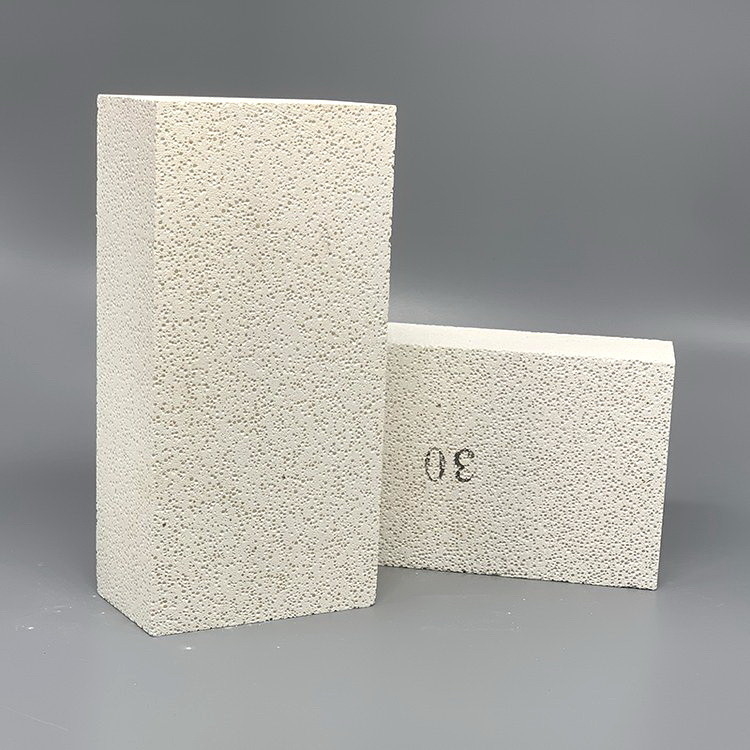

Lightweight Mullite Insulating Bricks Refractory Bricks for Electric Stove Tops

We manufacture customized products with special grade mullite (Al₂O₃ •2SiO2) as the major crystal phase, firing with poly-light ball by research according to actual service condition. It is used under the temperature can reach 1350~1700℃, can contact flame directly. Al₂O₃ is normally 65~75%.

Lightweight Mullite Insulating Bricks Refractory Bricks for Electric Stove Tops 0Lightweight Mullite Insulating Bricks Refractory Bricks for Electric Stove Tops 1Lightweight Mullite Insulating Bricks Refractory Bricks for Electric Stove Tops 2Lightweight Mullite Insulating Bricks Refractory Bricks for Electric Stove Tops 3

Lightweight Mullite Insulating Bricks Refractory Bricks for Electric Stove Tops 4
Physical and Chemical Index:

Item JM23 JM 26 JM28 JM 30
Chemical Composition (%)
Al2O3 42 56 67 73
SiO2 55 41 30 24
Fe2O3 ≤1 ≤0.8 ≤0.7 ≤0.7
K2O + Na2O 1.1 1.7 1.7 1.7
Density (kg/m3) 600 800 900 1000
Classification Temperature (°C) 1300 1400 1500 1550
Cold Crushing Strength (MPa) 1.2 1.8 2.5 3.3
Modulus of Rupture (MPa) 1.0 1.7 2.3 3.1
Permanent Linear Change (%) x 24hrs ≤0.6 ≤0.6 ≤0.8 ≤0.9
Thermal Expansion (%) 1000°C 0.5 0.52 0.52 0.53
Thermal Conductivity (W/m.k)
350°C 0.18 0.25 0.33 0.38
400°C 0.20 0.29 0.35 0.40
600°C 0.24 0.32 0.37 0.42

Applications:Project cases:
Lightweight Mullite Insulating Bricks Refractory Bricks for Electric Stove Tops 5

Mullite insulating brick can be used in high temperature kiln lining. Currently, it is widely used roof of hot-blast furnace, body and bottom of blast furnace, regenerative chamber of glass melting furnace, ceramic kiln, blind angle furnace lining of petroleum cracking system, shuttle kiln, roller kiln, linings of glass and petrochemical engineering furnaces.

Lightweight Mullite Insulating Bricks Refractory Bricks for Electric Stove Tops 6
Lightweight Mullite Insulating Bricks Refractory Bricks for Electric Stove Tops 7Lightweight Mullite Insulating Bricks Refractory Bricks for Electric Stove Tops 8

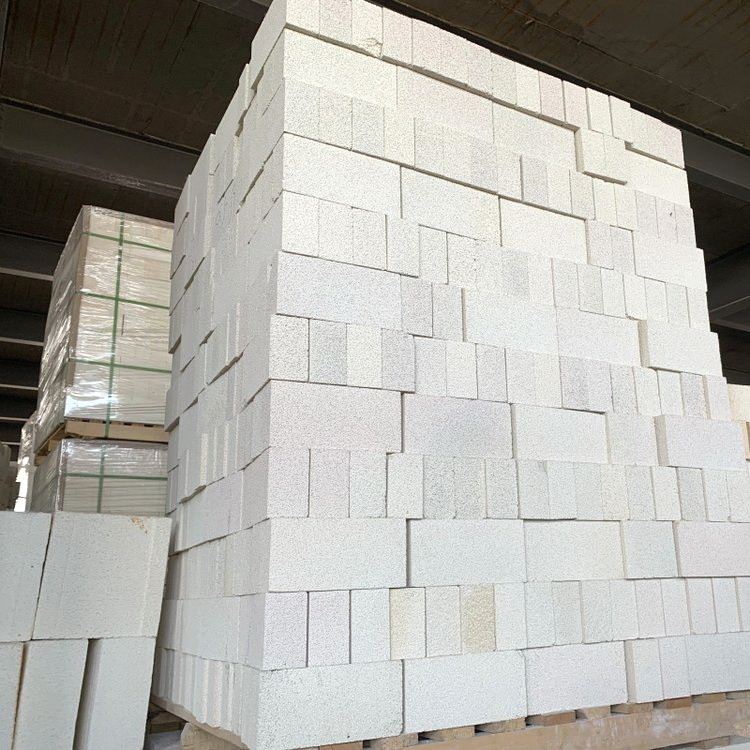

Welcome you to our factory:
Lightweight Mullite Insulating Bricks Refractory Bricks for Electric Stove Tops 9

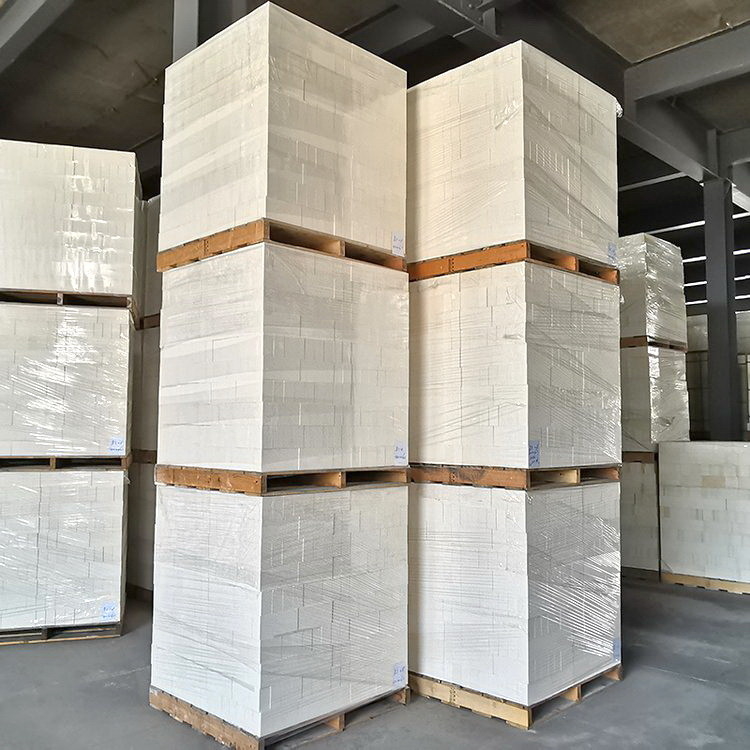

Packing:
Lightweight Mullite Insulating Bricks Refractory Bricks for Electric Stove Tops 10
When you visit our factory, we will pick up you at air port.
